Line Magnetic LM-88IA Integrated Amplifier
The LM-88IA is a 42-watt per channel, classic push-pull Integrated Stereo Amplifier, featuring KT88 (JJ Electronic) output tubes, alongside 6CL8A (Mullard) and 12BH7 (Electro Harmonix) input tubes.
The KT88 vacuum tube is known for its rich, full-bodied sound that audiophiles and musicians alike appreciate for its warmth, depth, and detailed tonal character.
The LM-88IA can operate in either Auto-bias or Fixed-bias modes, switchable via a sturdy toggle on the front panel. It delivers 42 watts per channel in Fixed-bias mode, while in Auto-bias mode, it outputs 30 watts per channel. When set to fixed mode, it produces a warmer sound, closer to the characteristics of Class A operation.
Made to Australian standard of 240V~.
We keep a small amount of stock for immediate shipping. Back-order ready to ship in 2-3 weeks.
The LM-88IA is a 42-watt per channel, classic push-pull Integrated Stereo Amplifier, featuring KT88 (JJ Electronic) output tubes, alongside 6CL8A (Mullard) and 12BH7 (Electro Harmonix) input tubes.
The KT88 vacuum tube is known for its rich, full-bodied sound that audiophiles and musicians alike appreciate for its warmth, depth, and detailed tonal character.
The LM-88IA can operate in either Auto-bias or Fixed-bias modes, switchable via a sturdy toggle on the front panel. It delivers 42 watts per channel in Fixed-bias mode, while in Auto-bias mode, it outputs 30 watts per channel. When set to fixed mode, it produces a warmer sound, closer to the characteristics of Class A operation.
Made to Australian standard of 240V~.
We keep a small amount of stock for immediate shipping. Back-order ready to ship in 2-3 weeks.
The LM-88IA is a 42-watt per channel, classic push-pull Integrated Stereo Amplifier, featuring KT88 (JJ Electronic) output tubes, alongside 6CL8A (Mullard) and 12BH7 (Electro Harmonix) input tubes.
The KT88 vacuum tube is known for its rich, full-bodied sound that audiophiles and musicians alike appreciate for its warmth, depth, and detailed tonal character.
The LM-88IA can operate in either Auto-bias or Fixed-bias modes, switchable via a sturdy toggle on the front panel. It delivers 42 watts per channel in Fixed-bias mode, while in Auto-bias mode, it outputs 30 watts per channel. When set to fixed mode, it produces a warmer sound, closer to the characteristics of Class A operation.
Made to Australian standard of 240V~.
We keep a small amount of stock for immediate shipping. Back-order ready to ship in 2-3 weeks.
Main Features
Class AB push-pull integrated amplifier
Hand-made construction with the finest point-to-point wiring

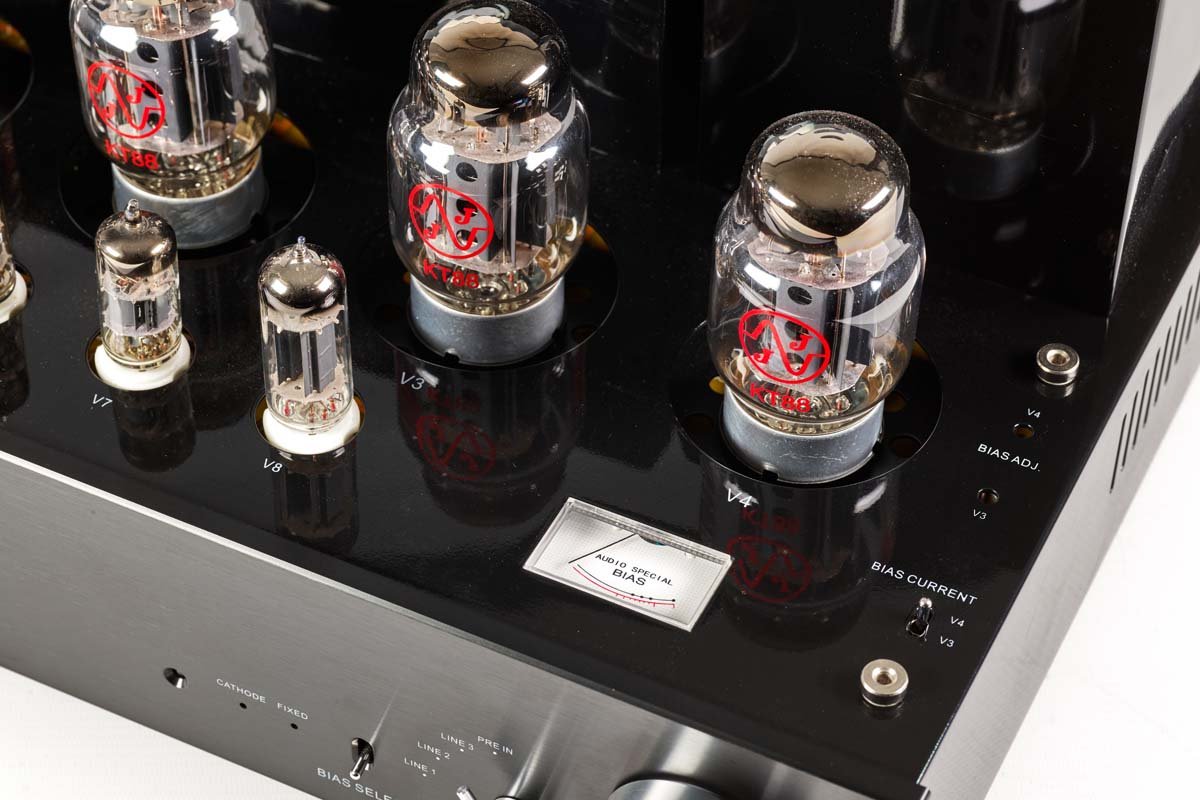

Bias control is accessible on top of the amplifier panel with true ampere meter
Soft Start and time-delay (30 seconds) circuit
A specially designed large Z11 core toroidal transformer for power supply
Two Japanese audio-grade EI output transformers with wide bandwidth
All transformers and chokes are encapsulated and mounted separately to minimize interference between components.
ALPS volume control and high capacity Realcap capacitors
Metal removable tube guard cage
Infrared remote control
Specification
Power output: 42W + 42W (Fixed-bias mode); 30W + 30W (Auto-bias/ Cathode-bias mode)
Load impedance: 4/ 8/ 16Ω
Analogue Inputs: 3x RCA line inputs and 1x Pre-in
Analogue Outputs: 2 x Screw terminals compatible with banana plugs
Frequency Response (-1.5dB): 10 – 50 kHz
Signal/Noise ratio: 87dB
THD: 1% (1kHz)
Pre-in: 1000 mV
Input Sensitivity: 250mV (Auto-bias); 180 mV (Fixed-bias)
Input Impedance: 100kΩ
Tubes Complement: 4 x KT88 (JJ), 2 x 6CL8A (Mullard), 2 x 12BH7 (Electro-Harmonix)
Power Consumption: 250 W
Voltage: 240V~
Dimensions (W x H x D): 436 x 220 x 366 mm
Net Weight: 30 Kg
